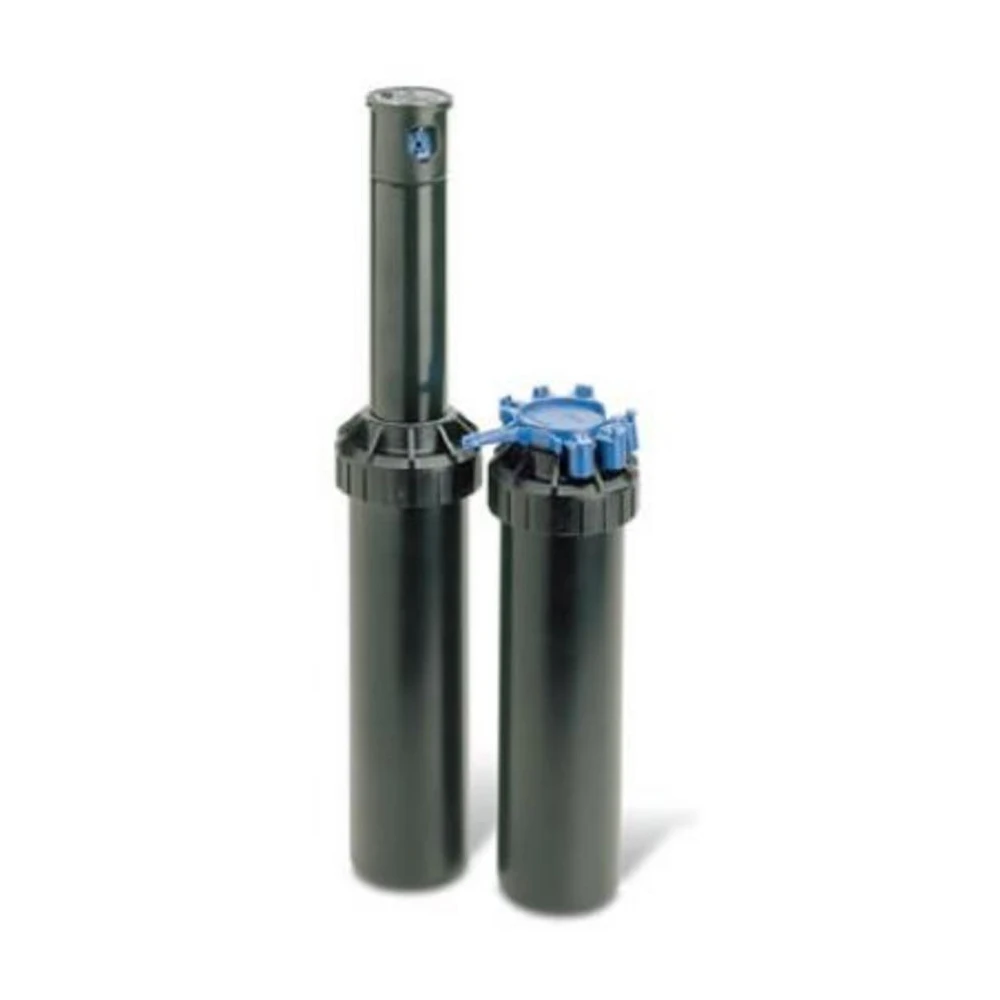

Rain Bird 3504 Pop Up Lawn Sprinkler

This pop up is an easy to use short to mid range 1/2” gear drive rotor, offering value and convenience for garden applications.

Utilizing a flat bladed screwdriver the arc adjustment is quick and easy.

FEATURES:

40 – 360º Part circle arc rotation and reversing full circle rotation in one.

Up to 35% radius reduction without changing nozzle.

Multi-function wiper seal.

Water lubricated gear driven design.

Nozzle tree of 6 nozzles included.

Easily removable filter screen.

SPECIFICATIONS

Radius: 4.6 to 10.7 metres

Pressure: 1.7 to 3.8 bars

Flow: 0.12 to 1.04 m³/h

Arc adjustment: 40º to 360º

1/2” female threaded bottom inlet

Radius with radius reduction screw: min 2.9 metres.
